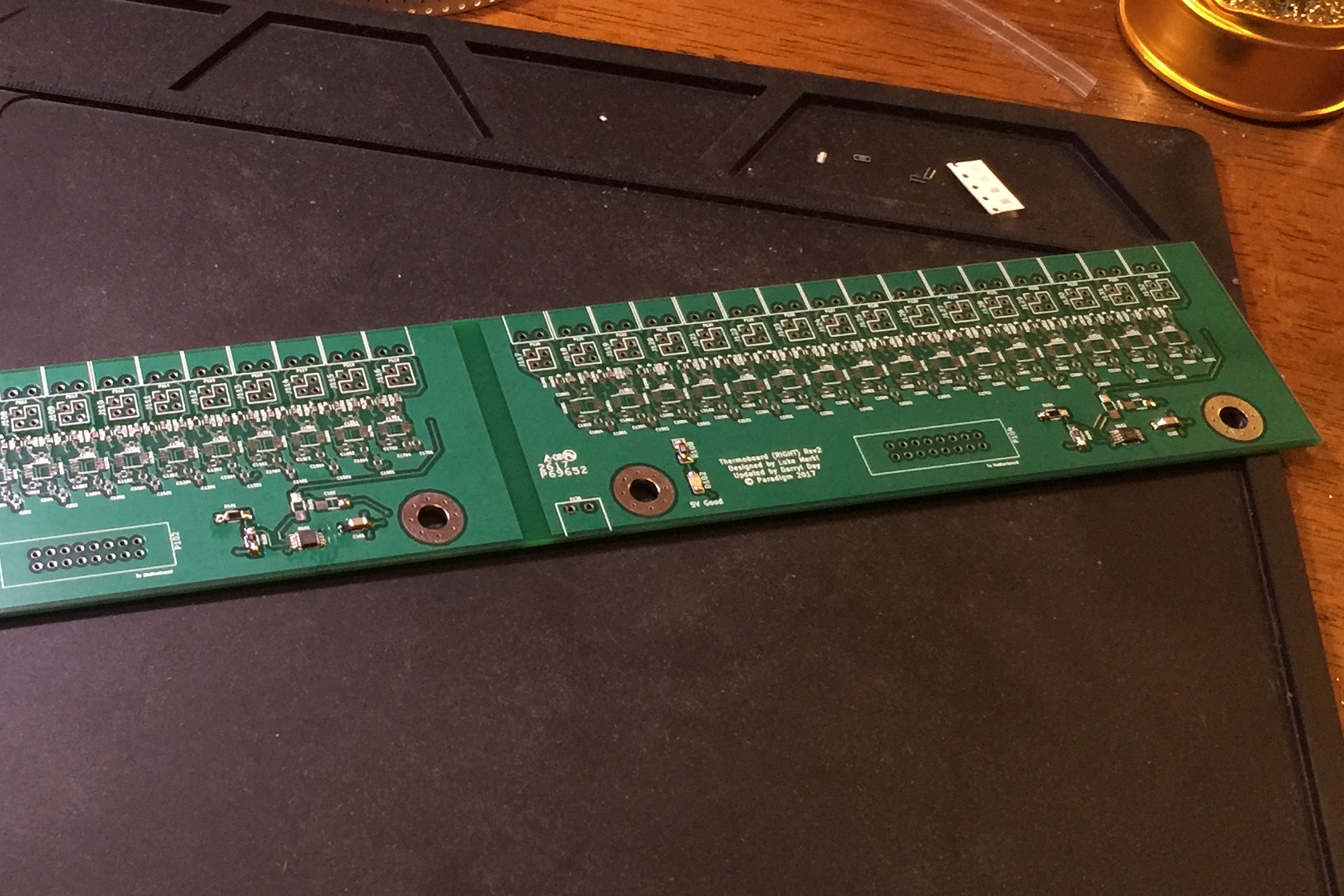

Thermal Board PCB

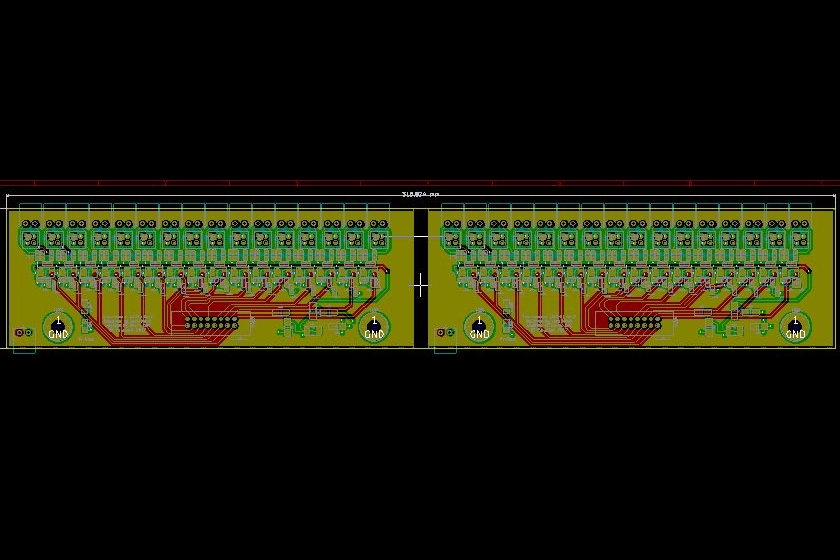

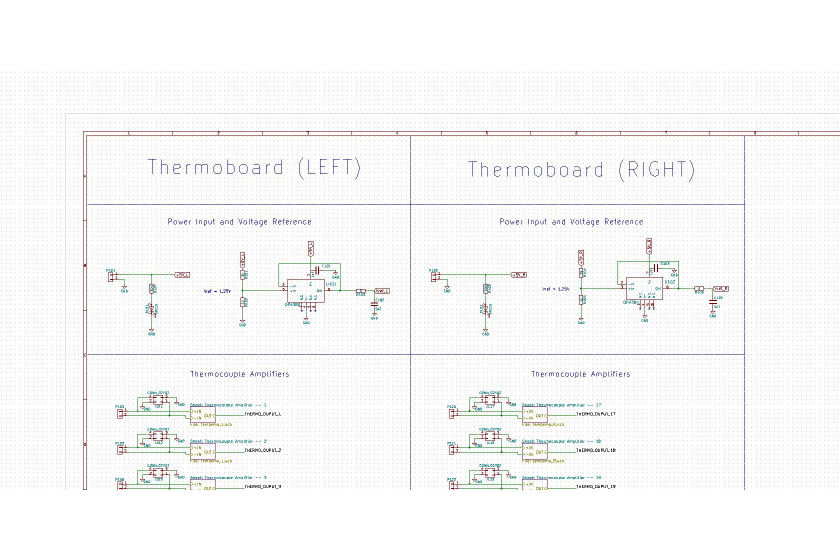

A custom PCB designed in KiCAD which holds circuitry to convert readings from multiple thermocouples to a known analog output range which is then fed into ADC's.
March 2017
KiCAD
https://github.com/ParadigmHyperloop/electrical/tree/master/THBO
